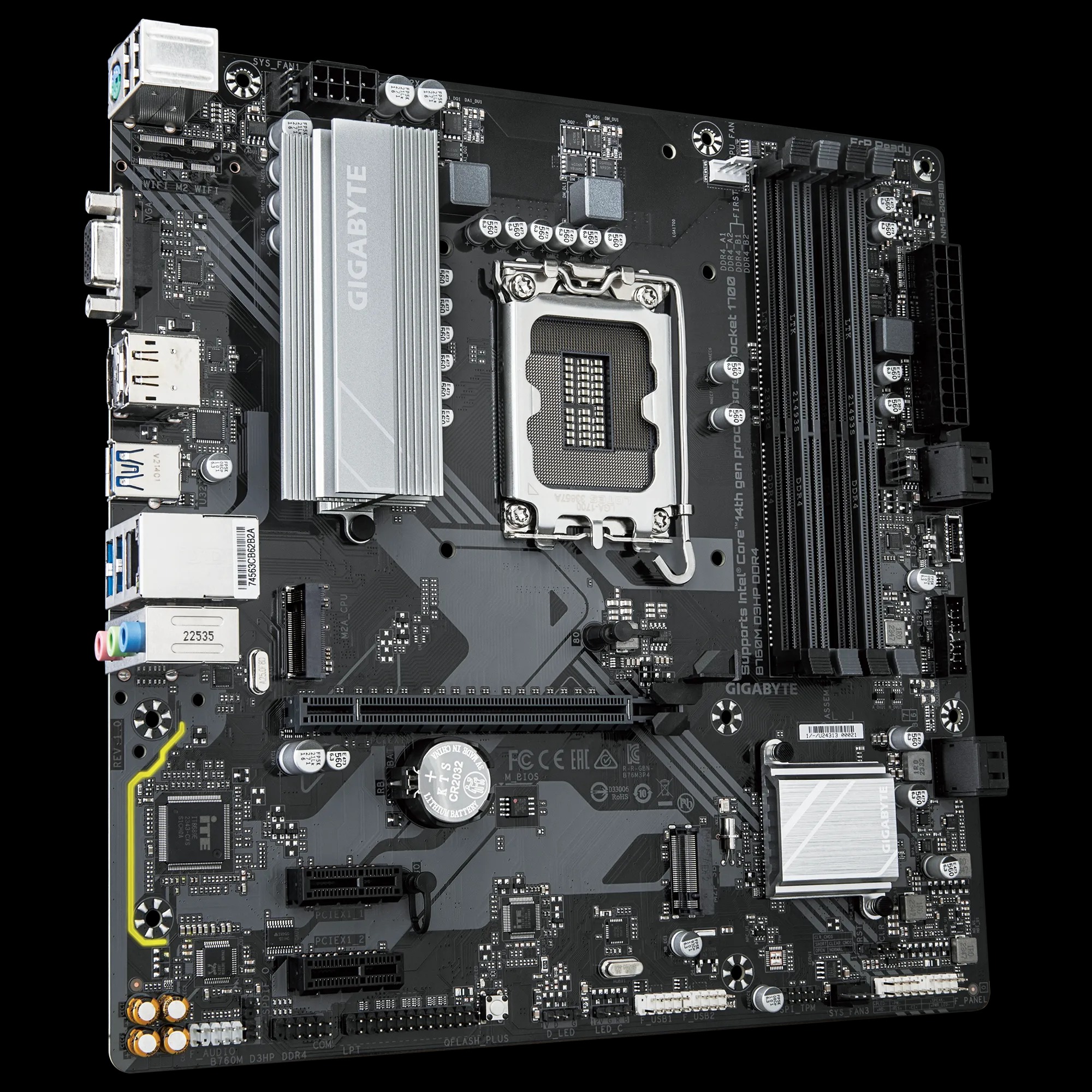

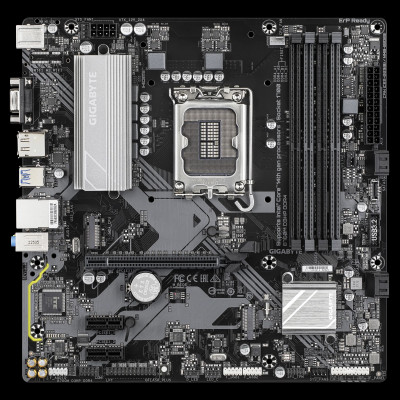

✨Mainboard Gigabyte B760M D3HP DDR4 Socket LGA1700 - Hàng Chính Hãng

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)...

Mua hàng tại Shopee giảm thêm 30%

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)

Chipset

Intel B760 Express Chipset

Bộ nhớ

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Card đồ họa tích hợp

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Âm thanh

Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Khe cắm mở rộng

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

  • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Giao diện lưu trữ

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

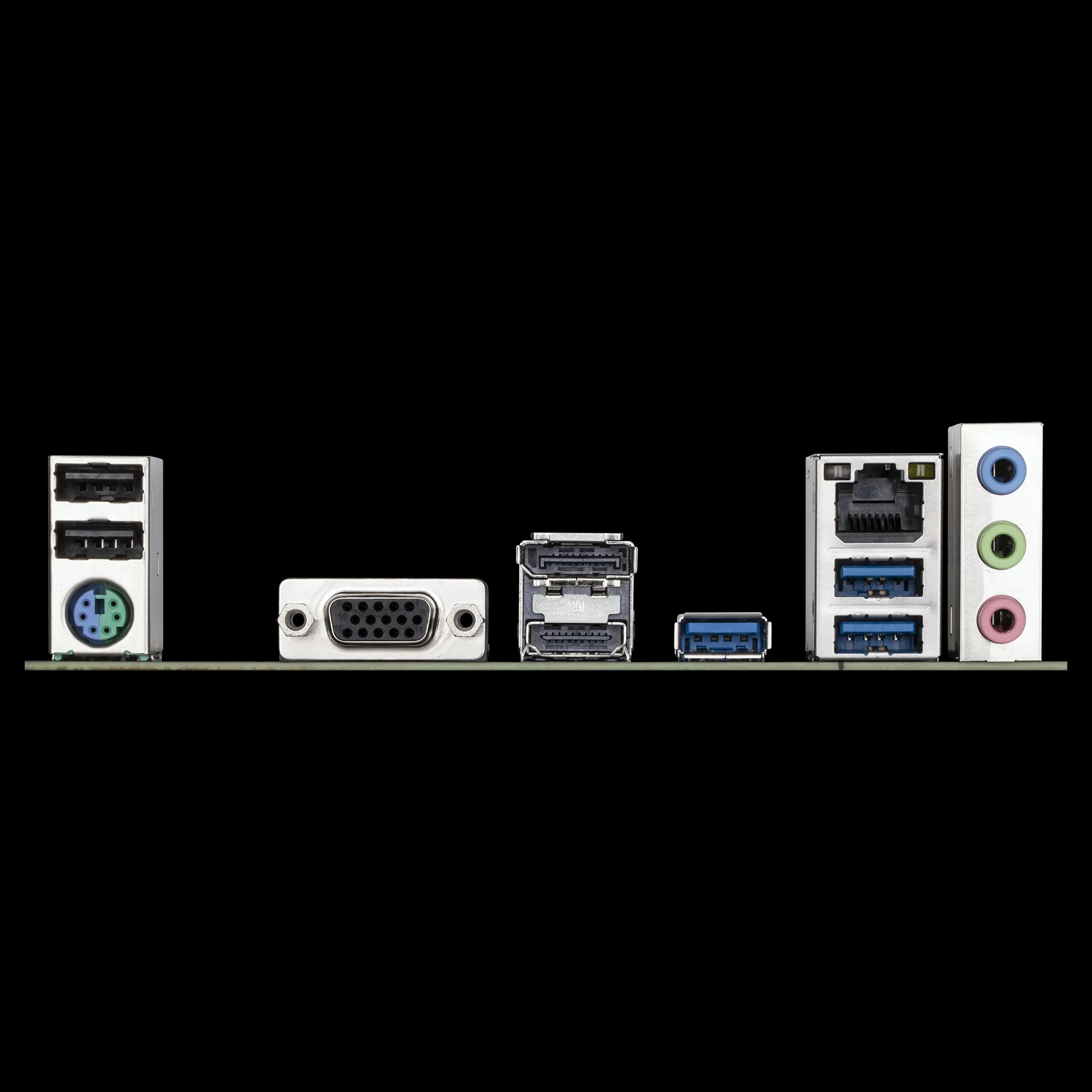

Kết nối bảng phía sau

2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks

Điều khiển I/O

iTE I/O Controller Chip

Theo dõi phần cứng

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control

  • Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash Support for Q-Flash Plus

Gói phần mềm

Norton Internet Security (OEM version) LAN bandwidth management software

Hệ điều hành

Support for Windows 11 64-bit Support for Windows 10 64-bit

Hệ số khuôn

Micro ATX Form Factor; 24.4cm x 24.4cm

Mua sản phẩm tại Shopee + FreeShip
Thương Hiệu GIGABYTE Model B660M DS3H DDR4 (rev. 1.0) Micro-ATX LGA1700 Intel B660 Express Chipset 4 Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /

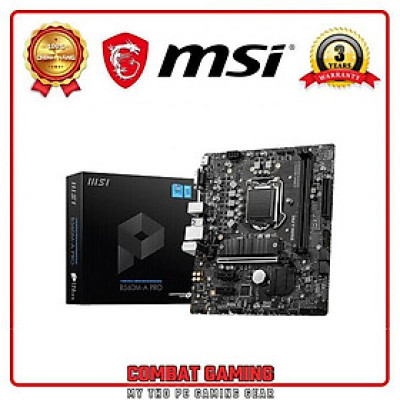

MAINBOARD MSI B560M-A PRO - Kích thước: M-ATX - Số khe RAM: 2 Thiết kế Dòng bMainboard MSI B560M-A PRO sở hữu thiết kế đơn giản với tông màu đen chủ đạo, phù hợp cho
- Chipset: Intel B660M - Socket: Intel LGA 1700 - Kích thước: M-ATX - Cổng HDMI / DP / D-Sub cho nhiều màn hình - Số khe RAM: 2 - Bảo hành chính hãng 36
THÔNG SỐ KỸ THUẬT - Chipset: INTEL B760 - CPU: - Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors - LGA 1700 - Memory: - 4x DDR4, Maximum Memory
Thương hiệu Bảo hành 36 tháng Cấu hình chi tiết Kích thước Micro-ATX Socket 1151-v2 Chipset H310 Khe RAM tối đa 2 khe Kiểu RAM hỗ trợ DDR4 Hỗ trợ bộ nhớ tối đa 32GB
Chipset: AMD X670 Socket: Socket AM5 Kích thước Main: ATX Hỗ trợ CPU: AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors Khe cắm RAM: 4 khe ram Loại RAM: DDR5 Shop
- Hỗ trợ CPU Intel thế hệ thứ 12 và 13 - Socket: LGA1700 , Chipset: Z790 - Hỗ trợ RAM: 4 khe DDR5, tối đa 128Gb - Chuẩn mainboard: ATX
Thương hiệu Gigabyte Dòng sản phẩm B650M GAMING PLUS WF Chipset B650 Kích cỡ mATX 243.84mmx243.84mm Khe cắm mở rộng 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8

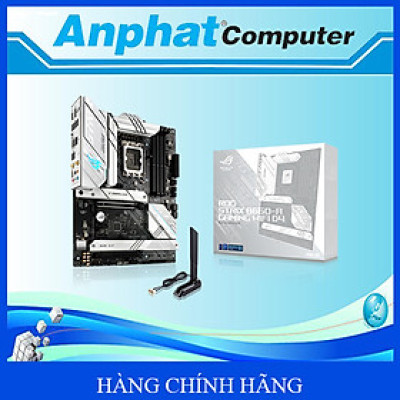

Sản phẩm Bo mạch chủ Tên Hãng Asus Model B660-A Gaming Wifi D4 CPU hỗ trợ Intel Chipset B660 RAM hỗ trợ 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Khe
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B760 Express

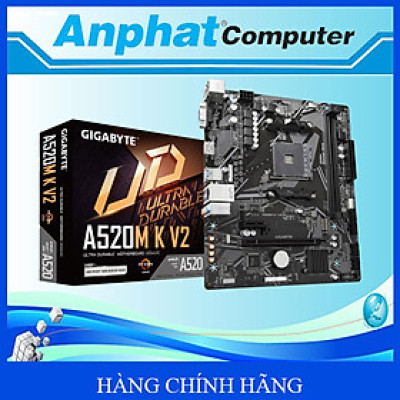

Thương hiệu Gigabyte Dòng sản phẩm A520M K V2 Chipset AMD A520 CPU Socket AM4, hỗ trợ AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 và Ryzen 3000 G-Series Bộ nhớ

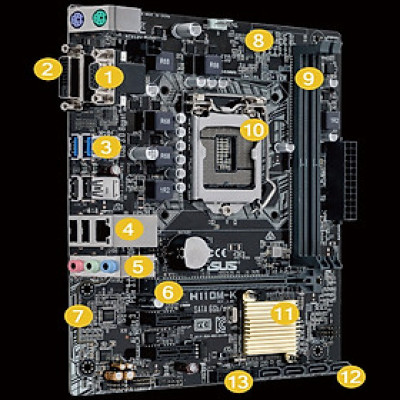

THÔNG SỐ KỸ THUẬT Hãng sản xuất ASUS Model H110M-K Chipset Intel H110 CPU hỗ trợ Intel Socket 1151 cho Thế hệ thứ 7/thứ 6 Core i7/Core i5/Core i3/Pentium/Celeron Bộ vi xử lý Hỗ trợ
CPU AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors Supports CPU up to 8 cores Chipset AMD A320 Memory AMD Ryzen Processors 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered
THƯƠNG HIỆU Gigabyte BẢO HÀNH 36 tháng CHIPSET Z790 SOCKET Intel LGA 1700 HỖ TRỢ CPU 14th, 13th, 12th Intel Core, Pentium Gold và Celeron KHE RAM TỐI ĐA 4 khe HỖ TRỢ BỘ NHỚ

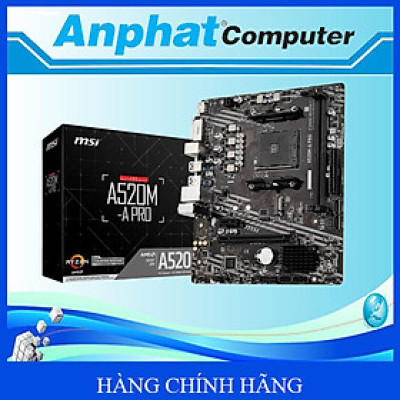

Thương hiệu MSI Dòng sản phẩm A520M-A PRO Chipset AMD A520 CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors Memory 2x DDR4 memory slots, support up to
Sản phẩm Bo mạch chủ Tên Hãng Gigabyte Model Z790 AERO G CPU hỗ trợ Intel Chipset Z790 RAM hỗ trợ Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) /
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 & 13Kích thước: Micro ATXKhe cắm RAM: 4 khe (Tối đa 128GB)Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16
SƠ LƯỢC CÔNG NGHỆ: - THIẾT KẾ 9 TỤ HYBRID - PCIe 4.0 - ÉP XUNG RAM DDR4 XMP - 2 KHE SSD M.2 Gen4x4 - TẢN NHIỆT SSD M.2 - KẾT NỐI LAN 2.5G

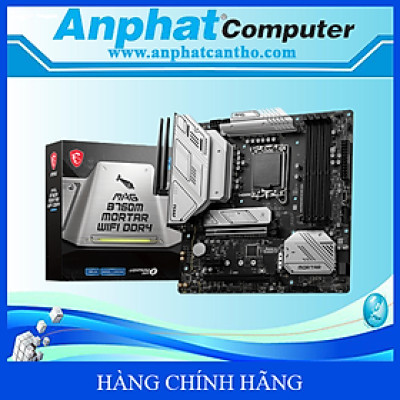

Nhà sản xuất MSI Model MAG-B760M-MORTAR-WIFI-DDR4 CPU hỗ trợ - Intel Core 12th/ 13th - Socket LGA1700 Chipset B760 Hỗ trợ Ram 4 x DDR4 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/
THÔNG SỐ KỸ THUẬT - Model: PRIME Z790-P CSM - CPU hỗ trợ: Intel - Chipset: Intel Z790 Chipset - RAM hỗ trợ: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/
Chipset: Intel B760 Socket: Intel LGA 1700 Kích thước Main: M-ATX Hỗ trợ CPU: Ổ cắm Intel LGA1700 dành cho bộ xử lý Intel Core thế hệ thứ 14 và 13, bộ xử lý Intel
RAM hỗ trợ: - Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) /

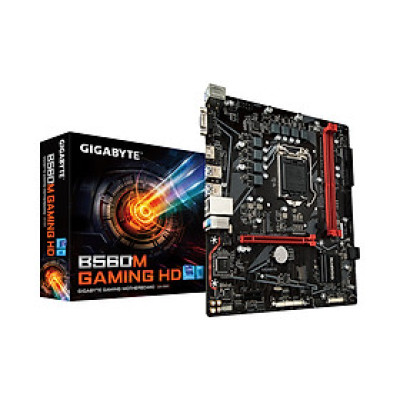

Mainboard GIGABYTE B560M GAMING HD là dòng bo mạch chủ được chế tạo dành cho các game thủ. Bo mạch chủ chơi game GIGABYTE B560M GAMING HD Intel với VRM kỹ thuật số 6 +

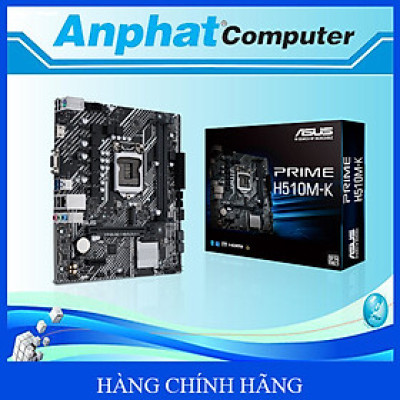

Sản phẩm Bo mạch chủ Tên Hãng ASUS Model PRIME H510M-K CPU hỗ trợ Hỗ trợ cho thế hệ thứ 10&11 Intel Core Socket LGA1200 Chipset H510 RAM hỗ trợ 2 x DDR4 DIMM Slots
Sản phẩm Tên Hãng Gigabyte Model B650 Gaming X AX DDR5 CPU hỗ trợ AMD Chipset B650 RAM hỗ trợ Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to
HƯƠNG HIỆU Gigabyte BẢO HÀNH 36 tháng CHIPSET B450 SOCKET AMD AM4 KHE RAM TỐI ĐA 4 khe BUS RAM HỖ TRỢ 2133MHz, 2400MHz, 2667MHz, 2933MHz, 3466(OC), 3600(OC), 3200(O.C.) HỖ TRỢ BỘ NHỚ TỐI ĐA

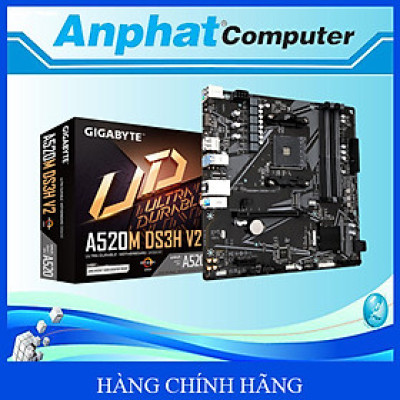

Thương hiệu Gigabyte Dòng sản phẩm A520M DS3H V2 Chipset AMD A520 Hỗ trợ CPU AMD Ryzen 5000 Series, 4000 G-Series, 3000 Series Khe cắm mở rộng PCIe 3.0 x16, PCIe 3.0 x1 Lưu trữ
Socket: Intel Socket LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14 Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 192GB) Khe cắm mở rộng: 1 x PCIe 5.0 x16
Dòng bo mạch chủ GIGABYTE Series 8 Bo Mạch Chủ Gigabyte H81M DS2 hỗ trợ bộ vi xử lý Intel Core thế hệ 4, với sự kết hợp này sẽ đem lại sự pha trộn
Thương hiệu MSI Dòng sản phẩm MEG Z890 UNIFY-X Chipset INTEL Z890 Kích cỡ 1x Intel Killer E5000B 5G LAN Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 9600 - 6400 (OC) MT/s
Tình trạng: Mới 100% Xuất xứ: Chính hãng Thương hiệu: GIGABYTE Kênh đôi DDR4 không có bộ đệm ECC, 4 DIMM Trực tiếp 12 + 1 giai đoạn VRM kỹ thuật số với MOSFET RDS
CPU (HỖ TRỢ TỐI ĐA) Ryzen thế hệ 1, 2 và 3 với Đồ họa Radeon Vega và AMD Ryzen thế hệ 2 với Đồ họa Radeon / Athlon với Đồ họa Radeon Vega và
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel

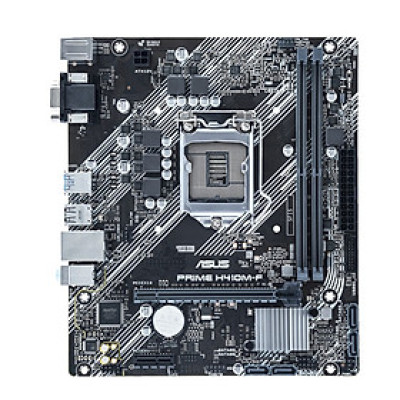

Bo mạch chủ Mainboard ASUS PRIME H410M-F - Ổ cắm Intel LGA 1200: Sẵn sàng cho bộ vi xử lý Intel Core thế hệ thứ 10 - 5X Protection III: Nhiều biện pháp bảo vệ
